Total. 3

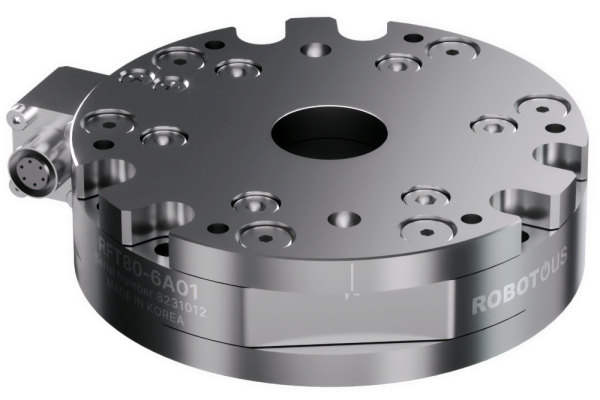

Hollow-shaft Force/Torque Sensor
- Hollow-shaft design for easy cable routing
- Well-Balanced force and torque measurement capabilities
- Ideal for industrial, collaborative, and medical robots, as well as other demanding automation applications
- Supports CAN, RS-232, RS-422, USB, and EtherCAT interfaces
Key Specifications
| Item | Fx, Fy | Fz(-Fz) | Tx, Ty | Tz |
| Load Capacity | 400N | 400N | 20Nm | 20Nm |
| Resolution | 100mN | 100mN | 5mNm | 5mNm |
| Overload Capacity(%) | 150 | 200(400) | 200 | 200 |
| Dimension & Weight | 80(D) x 22(H)mm 226g | |||

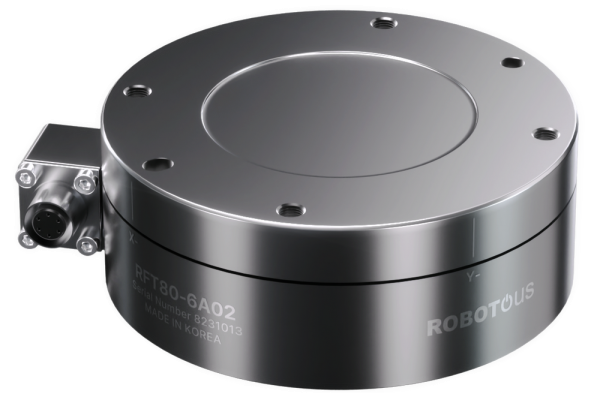

Flagship Sensor Series for High-Capacity Robotics
- Robotous's flagship force/torque sensor series
- Advanced temperature compensation and embedded EtherCAT connectivity
- Ideal for industrial, collaborative, humanoid, and medical robots, as well as other demanding automation applications
- Supports CAN, RS-232, RS-422, RS-485, USB, and EtherCAT interfaces
Key Specifications
| Item | Fx, Fy | Fz(-Fz) | Tx, Ty | Tz |
| Load Capacity | 400N | 400N | 20Nm | 20Nm |
| Resolution | 80mN | 80mN | 4mNm | 4mNm |
| Overload Capacity(%) | 300 | 300(300) | 300 | 300 |
| Dimension & Weight | 80(D) x 30(H)mm 294g | |||

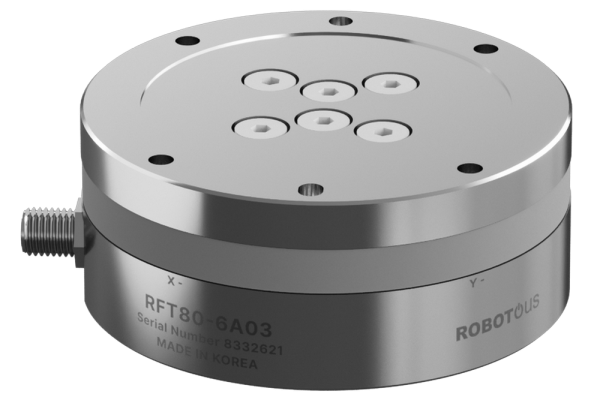

High-Capacity Sensor for Demanding Applications
- Highest-capacity model in the RFT series
- Advanced temperature compensation and embedded EtherCAT communication
- Ideal for industrial, collaborative, humanoid, and medical robots, as well as other demanding automation applications
- Supports CAN, RS-232, RS-422, USB, and EtherCAT interfaces
Key Specifications
| Item | Fx, Fy | Fz(-Fz) | Tx, Ty | Tz |
| Load Capacity | 1000N | 1000N | 50Nm | 50Nm |
| Resolution | 250mN | 250mN | 10mNm | 10mNm |
| Overload Capacity(%) | 300 | 300(300) | 300 | 300 |
| Dimension & Weight | 80(D) x 33(H)mm 322g | |||
