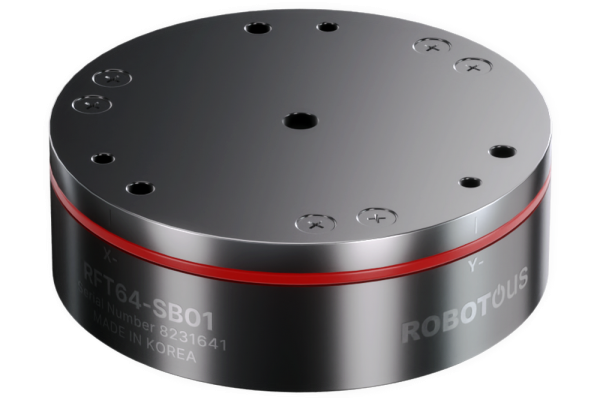

Versatile Performance for Industrial Automation
- Dust-sealed design for industrial environments
- Optimized balanced of size and performance
- Suitable for a wide range of automation applications
- Reliable and repeatable measurements
- Supports CAN, RS-232, RS-422, USB, and EtherCAT interfaces
Key Specifications
| Item | Fxy | Fz(Fz-) | Txy | Tz |
| Load Capacity | 150N | 200N | 4Nm | 4Nm |
| Resolution | 200mN | 200mN | 5mNm | 5mNm |
| Overload Capacity(%) | 150 | 150(300) | 150 | 150 |
| Dimension & Weight | 64(D) x 20(H)mm 140g | |||

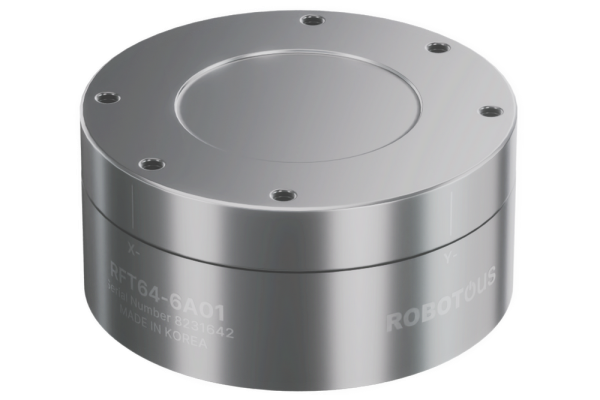

Flagship Sensor Series for Precision Robotics
- Robotous's flagship force/torque sensor series
- Available in high-performance models
- Compact design with exceptional measurement performance
- Ideal for industrial automation, collaborative robots, humanoid robots and other advanced robotic applications
- Supports CAN, RS-232, RS-422, RS-485, USB, and EtherCAT interfaces
Key Specifications
| Item | Fxy | Fz(Fz-) | Txy | Tz |
| Load Capacity | 200N | 200N | 10Nm | 10Nm |
| Resolution | 80mN | 80mN | 4mNm | 4mNm |
| Overload Capacity(%) | 300 | 300(300) | 300 | 300 |
| Dimension & Weight | 64(D) x 30(H)mm 175g | |||
